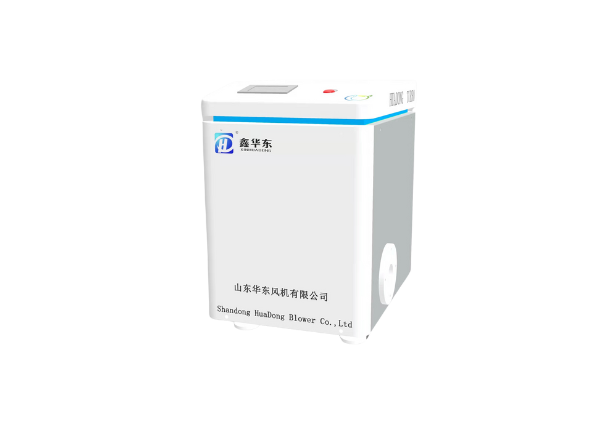

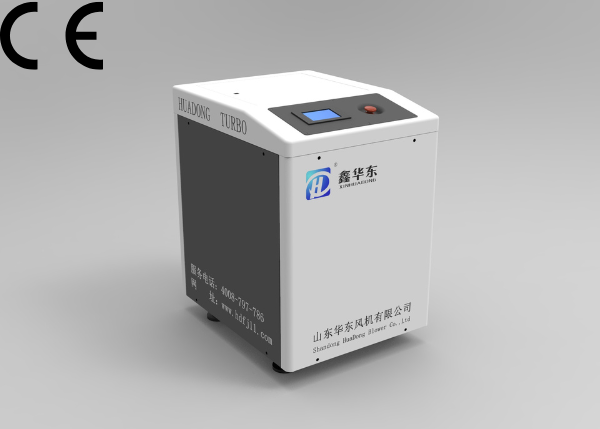

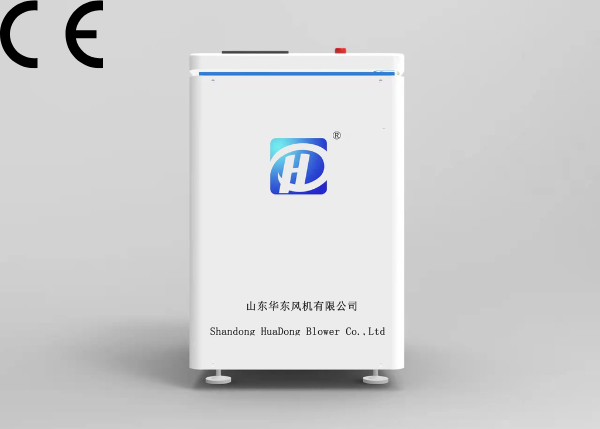

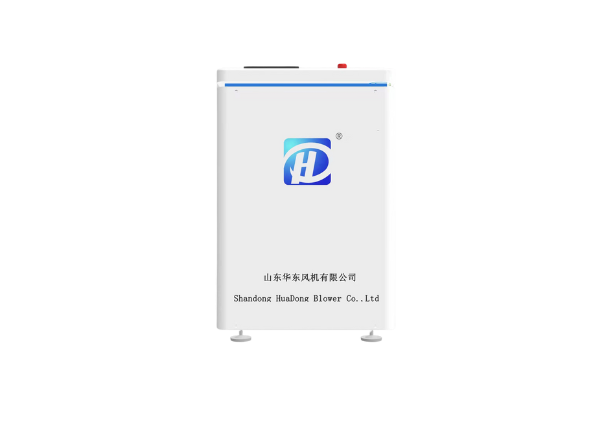

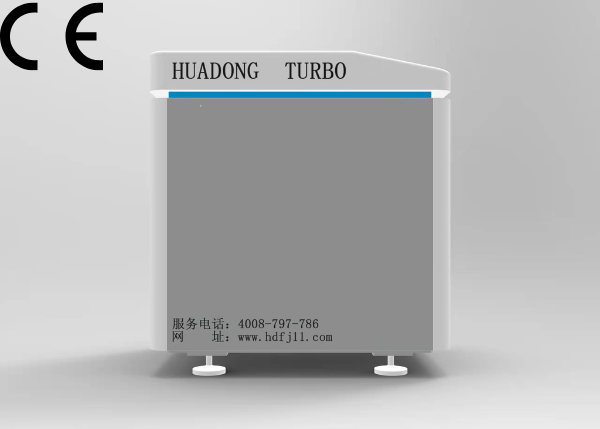

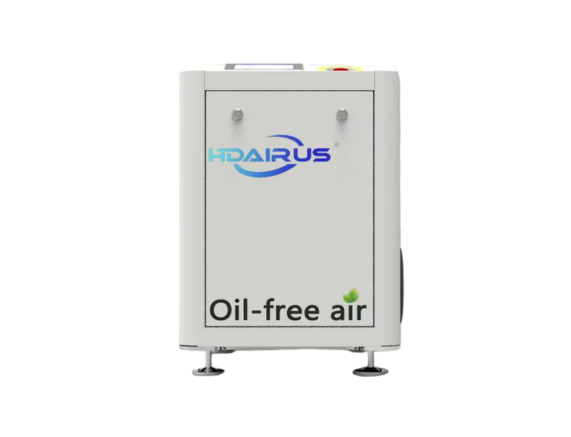

HIGH SPEED TURBO BLOWER FOR AQUACULTURE AERATION
10-60Kpa
UP TO
40%
Energy Savings
OVER
50%
Smaller Footprint
UP TO
87%
Turndown
BELOW
80dBA
Low Noise
Selection parameters of water depth below 1.2m | |||||||||
MODEL | HDG4 | HDG5.5 | HDG7.5 | HDG11 | HDG15 | HDG18.5 | HDG22 | HDG30 | HDG37 |
POWER(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
POSITIVE PRESSURE Flow rate(M3/MlN): 1atm,20° Humidity 65% | |||||||||
10 | 9.3 | 14.4 | 21.4 | 28.9 | 39.3 | 48.3 | 55.4 | 78.5 | 96.9 |
15 | 8.6 | 13.7 | 20.6 | 27.5 | 37.4 | 45.9 | 52.6 | 74.7 | 92.2 |
20 | 7.3 | 12.9 | 18.3 | 25.9 | 35.2 | 43.4 | 49.2 | 70.2 | 86.7 |
25 | 6.9 | 10.5 | 13.9 | 21.1 | 28.6 | 35.2 | 39.7 | 57.3 | 70.4 |
Selection parameters of 1.2m-3m water depth | |||||||||
MODEL | HDG4 | HDG5.5 | HDG7.5 | HDG11 | HDG15 | HDG18.5 | HDG22 | HDG30 | HDG37 |
POWER(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
POSITIVE PRESSURE Flow rate(M3/MIN): 1atm,20° Humidity 65% | |||||||||
30 | 6.4 | 8.8 | 12.1 | 17.6 | 24.1 | 29.6 | 35.1 | 48.1 | 59.3 |
35 | 5.3 | 7.2 | 10.2 | 14.8 | 21.4 | 26.3 | 30.7 | 41.7 | 53.8 |
40 | 4.8 | 6.6 | 9.1 | 13.1 | 17.8 | 21.9 | 26.1 | 35.5 | 43.8 |
Selection parameters of water depth above 3M | |||||||||
MODEL | HDG-D22 | HDG-D30 | HDG-D37 | HDG-D45 | |||||
POWER(KW) | 22 | 30 | 37 | 45 | |||||
POSITIVE PRESSURE Flow rate(M3/MlN): 1atm,20° Humidity 65% | |||||||||
60 | 17 | 24 | 29 | 35 |

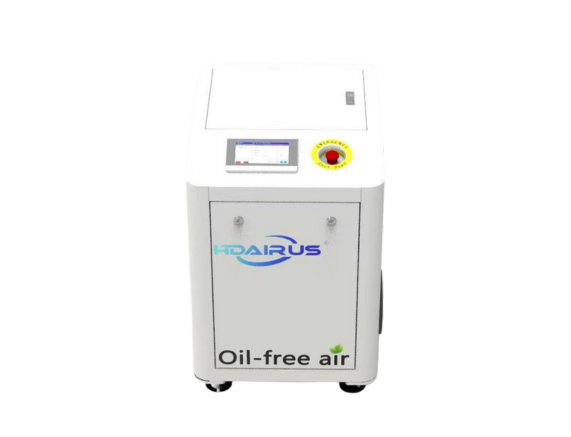

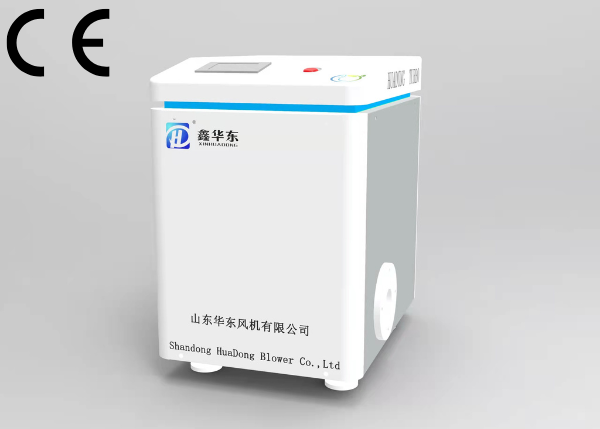

1. Touch control: the intelligent control panel is easy to use with finger touch screen
2. Mobile phone remote control: the mobile phone can monitor the operation of the aerator at home and remotely control the amount of oxygen; no matter where you are, the shrimp shed is under control
3. Automatic alarm system: automatic alarm and timely record the cause of the fault, the microcomputer forms a fault warning, and reduces fault downtime
4.Filter system: a complete filtration system provides clean air to ensure the healthy growth of fish and shrimp
5.Corrosion resistance: the protection of the filtration system and the box body makes the host longer
1. High-speed aerators are mainly used in the aquaculture industry to increase oxygen for fish and shrimp aquatic products, promote their growth and reproduction, quickly improve the fluoride content in water, prevent or reduce fish and shrimp floating heads, and accelerate the circulation of pond materials, thereby purifying water and stabilizing water quality.

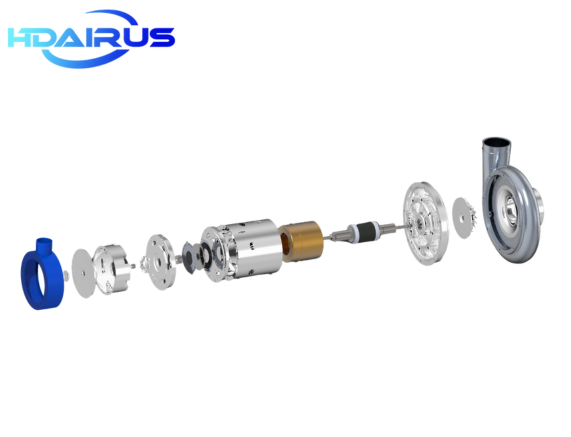

2. Core technology:
(1) High-speed permanent magnet motor:
Adopt high-efficiency permanent magnet synchronous motor (PMSM), efficiency ≥ 96%, microcomputer control, speed can reach more than 20,000 revolutions per minute, insulation grade is H grade (maximum high temperature resistance 170°C).

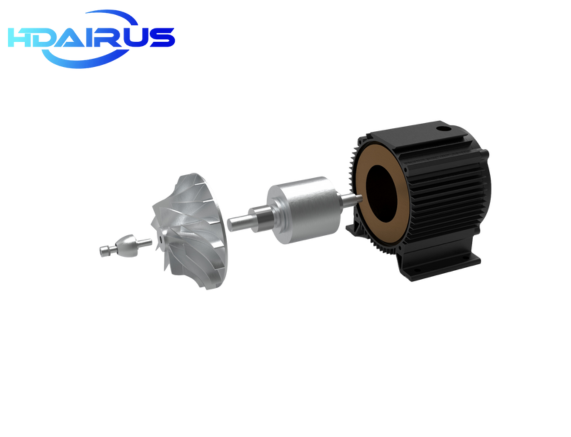

(2) One-piece straight body:
Adopt the design of impeller and motor for users with one shaft, no intermediate transition such as pulley and other connecting parts are required, transmission loss is reduced to zero, and transmission efficiency is 100%.

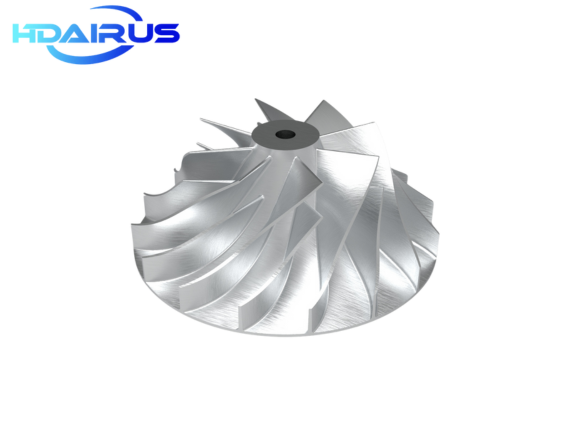

(3) Three-dimensional flow impeller:
Precision manufacturing of aviation aluminum, strong corrosion resistance, precision manufacturing of five-axis machining center, tolerance is kept below 5/1000 mm, light weight, low power consumption.
High-speed aerators are mainly used in the aquaculture industry, specifically in the following aspects:
1. Rapidly improve the oxygen content in the water.
2. Prevent or reduce the floating of fish and shrimp: Due to the fast oxygenation effect, it is not easy to cause dead fish and shrimp in the pond.
3. Accelerate the circulation of pond materials: Due to the replenishment of dissolved oxygen in the pond, aerobic bacteria in the lower water and silt can be rapidly multiplied, thereby accelerating the process of organic matter degradation and forming new organisms.
4. Purify the water body: Due to the accelerated circulation of materials in the pond, organic matter (including excrement, animal carcasses, etc.) that affects the life of fish and shrimp is converted into inorganic salts, creating a good growth environment for fish and shrimp.
5. Stabilize water quality·Due to the increase in dissolved oxygen in the water, the material circulation in the pond is fast, which creates good conditions for the reproduction of plankton and keeps the water quality stable.
6. Improve the utilization rate of bait: Due to the improvement of the dissolved oxygen content in the pond water, the speed of material circulation is accelerated, which promotes the metabolism of fish and shrimp, is beneficial to the growth of fish and shrimp, and improves the utilization rate of bait.
7. It is beneficial to prevent and treat fish and shrimp diseases. Due to the increase of dissolved hydrogen in pond water, the physique of fish and shrimp is good and they grow fast, which enhances their resistance to diseases and reduces the incidence rate accordingly.
