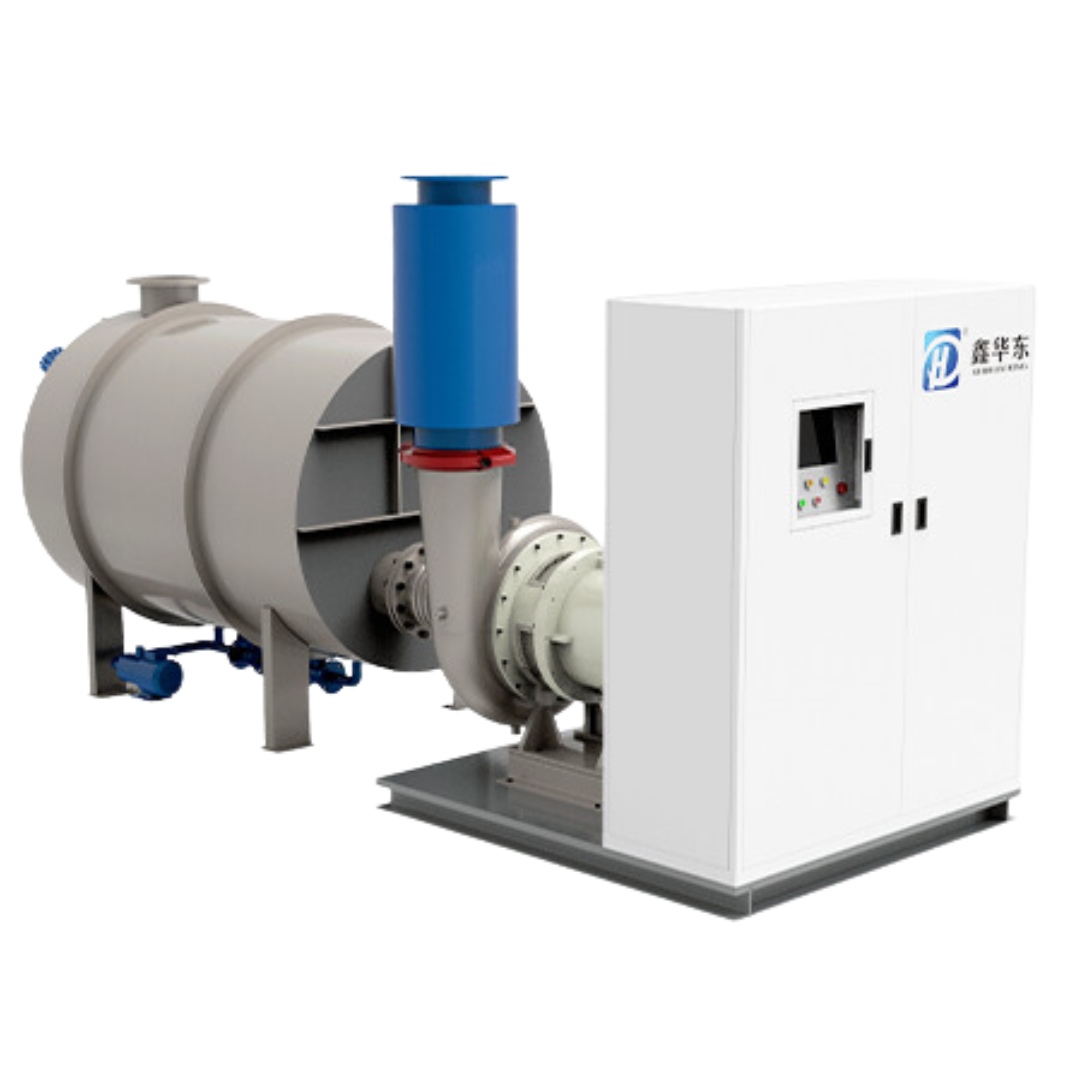

HMVB Magnetic Suspension Turbine Vacuum Pump
HDAirus HMVB Magnetic Suspension Turbine Vacuum Pump features titanium impellers and smart PLC control. 100% oil-free, highly efficient, and low maintenance for paper, chemical, and semiconductor industries. Save energy now.
Type: Magnetic suspension turbine vacuum pump
Pressure: 10-70kpa锛坴accum range锛
Capacity: 36-1590 M3/MIN
Feature: No mechanical maintenance, 100% oil-free
Product Introduction
High-End Maglev Engineering
HDAirus HMVB Magnetic Suspension Turbine Vacuum Pump integrates advanced maglev bearings, titanium alloy impellers, and high-speed permanent magnet motors. This intelligent centrifugal system offers a simple, integrated design with remarkable energy savings. Engineered for demanding sectors like paper-making, chemicals, and semiconductors, it ensures 100% oil-free operation and low maintenance costs. Experience the future of industrial vacuum technology with our robust and efficient HMVB series.
Technical Specifications
Key Parameters & Energy Efficiency
| Model | Product Specifications | ||
|---|---|---|---|
| Vacuum Degree (kPa) | Flow Rate (m鲁/min) | Motor Power (kW) | |
| HMVB30 | 10~70 | 36~53 | 30 |
| HMVB45 | 10~70 | 49~74 | 45 |
| HMVB55 | 10~70 | 62~92 | 55 |
| HMVB75 | 10~70 | 84~129 | 75 |
| HMVB110 | 10~70 | 125~190 | 110 |
| HMVB150 | 10~70 | 167~256 | 150 |
| HMVB200 | 10~70 | 222~337 | 200 |
| HMVB315 | 10~70 | 350~535 | 315 |
| HMVB400 | 10~70 | 446~681 | 400 |
| HMVB500 | 10~70 | 525~800 | 500 |
| HMVB600 | 10~70 | 675~1030 | 600 |
| HMVB710 | 10~70 | 770~1175 | 710 |
| HMVB800 | 10~70 | 865~1316 | 800 |
| HMVB1000 | 10~70 | 1045~1590 | 1000 |
Engineering Excellence
The Core of Magnetic Levitation
01
Active Magnetic Bearing System
Eliminating mechanical wear and lubrication needs for a completely maintenance-free operation.
02
Ultra-High Efficiency PM Motor
High-speed synchronous technology achieving up to 98% efficiency for maximum energy savings.
03
Oil-Free Direct Drive Transmission
Removing the gearbox and lubrication systems to ensure 100% oil-free performance and higher reliability.
04
High-Performance Frequency Control
Versatile VFD integration offering multiple control modes for precise and flexible speed management.
05
Intelligent Monitoring & Anti-Surge System
Real-time status tracking with an integrated safety system to ensure continuous, stable operation.
Compliance & Trust
Industrial Standards Certified

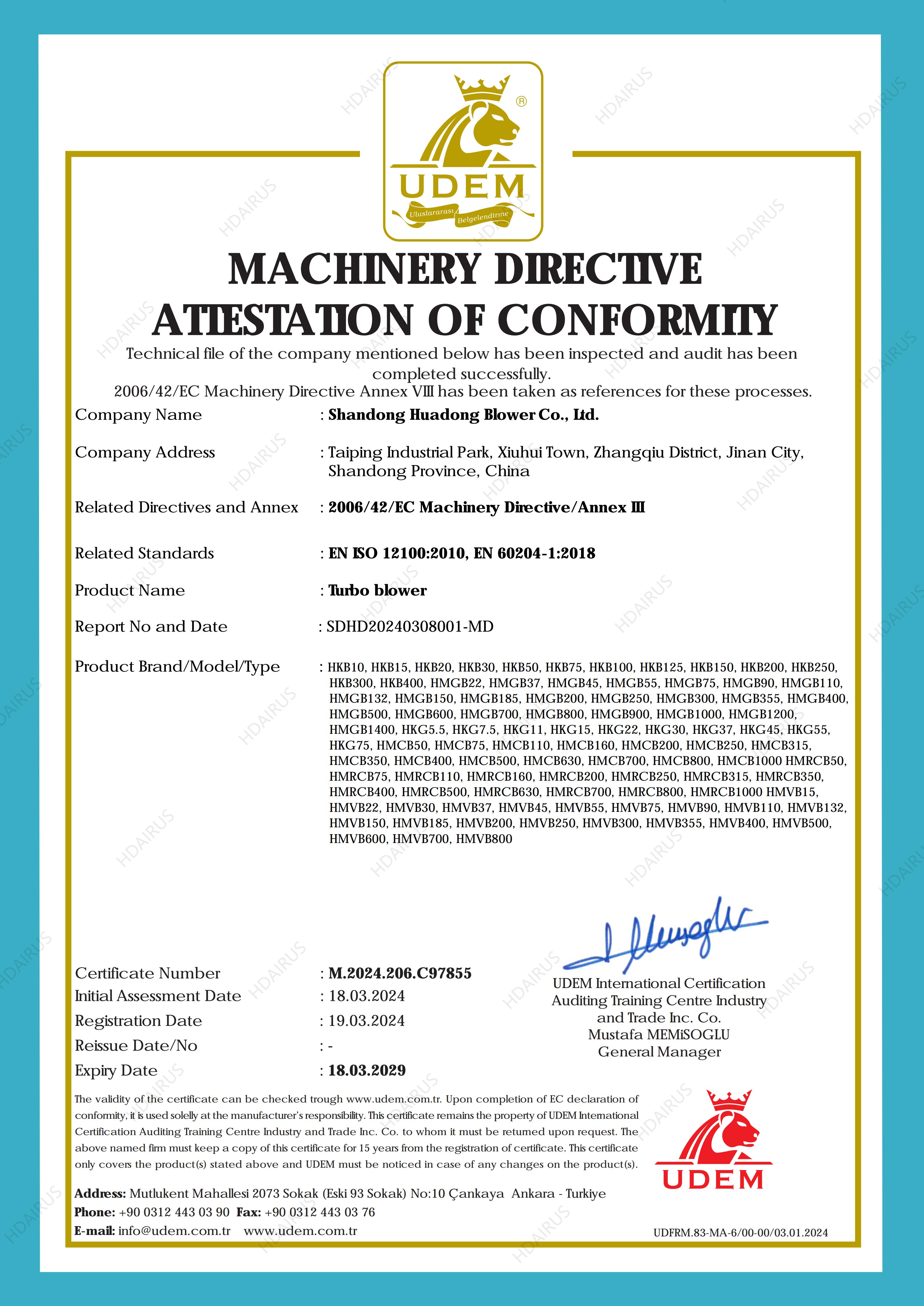

CE
EAC

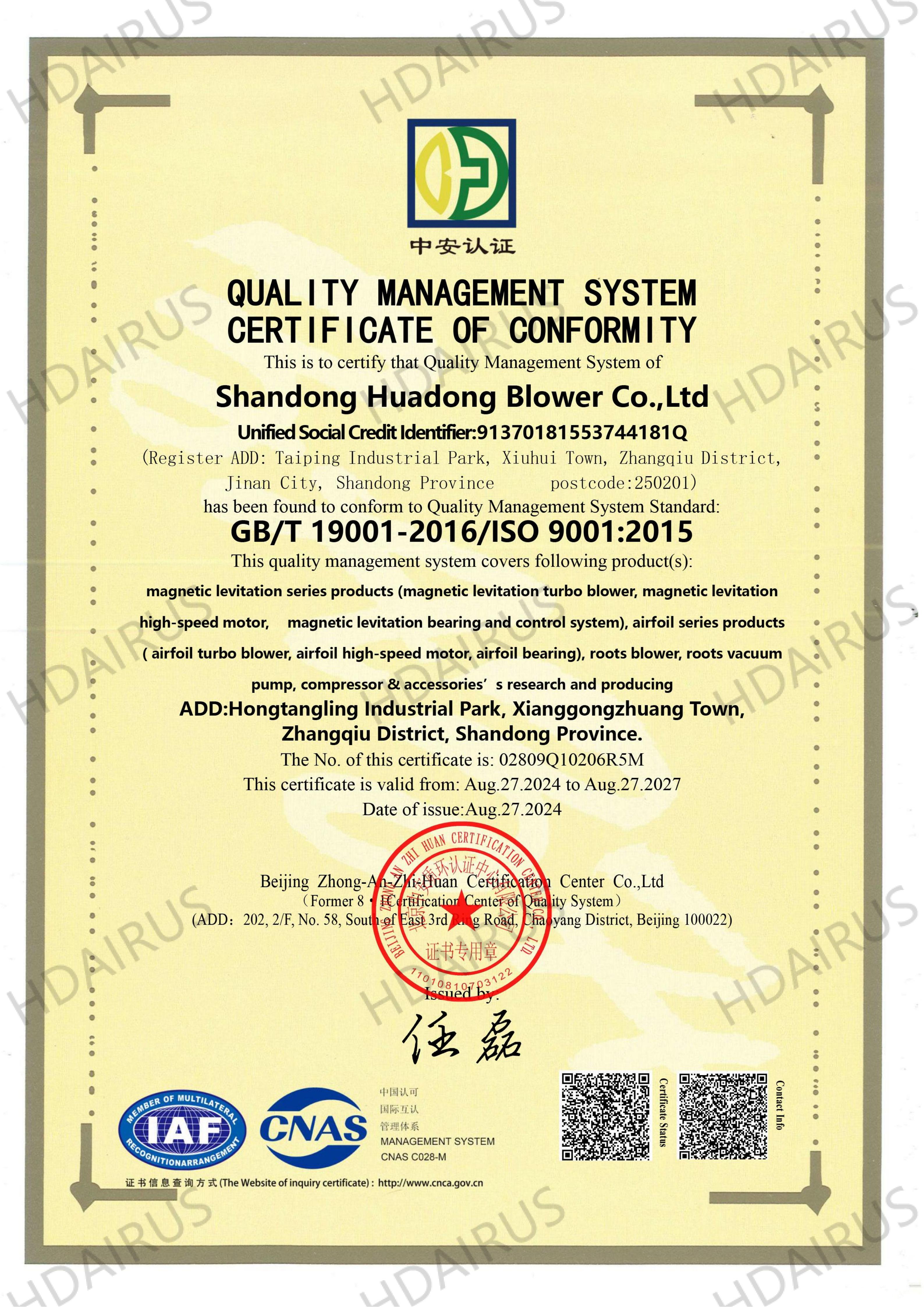

ISO9001

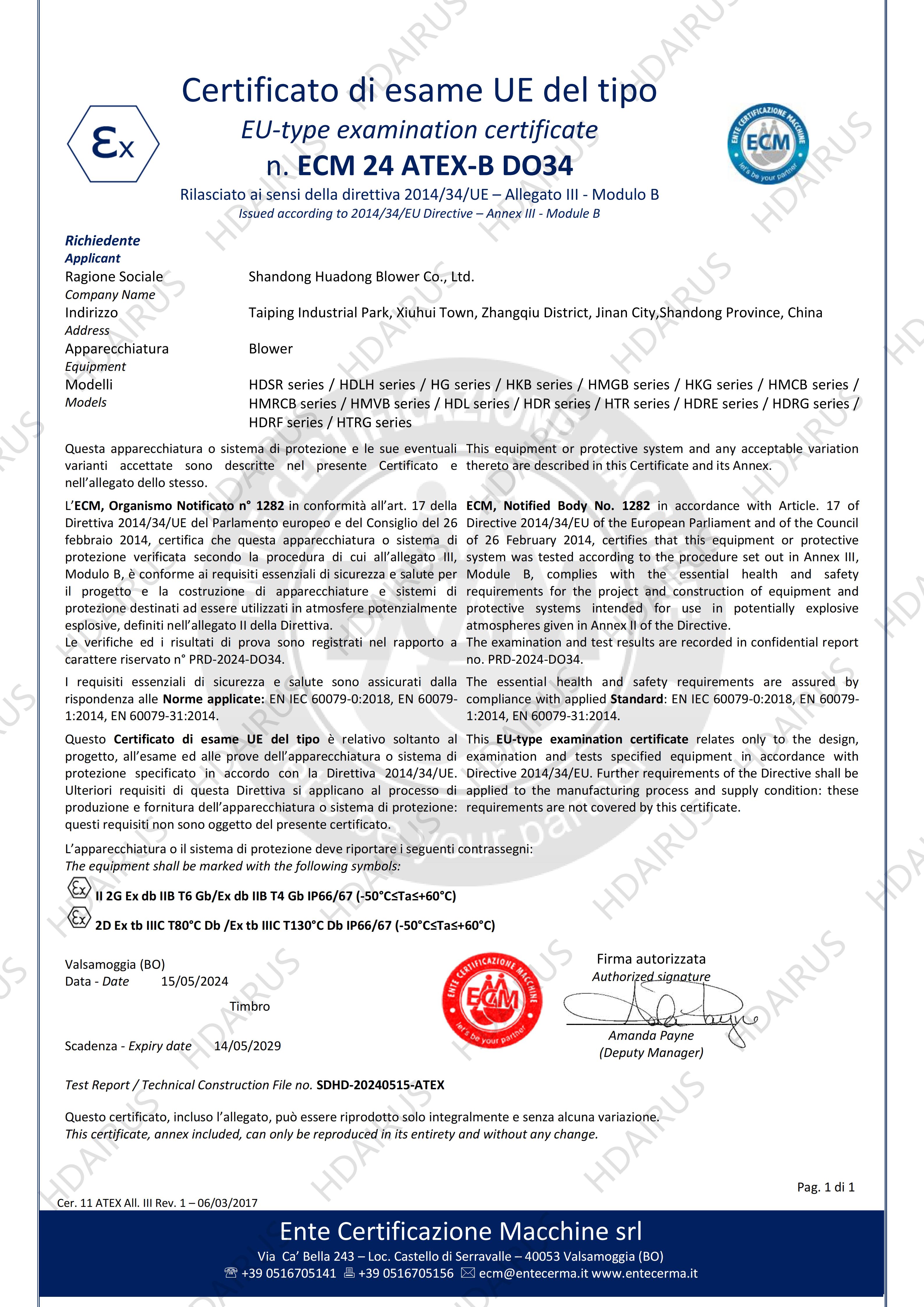

ATEX
Industrial Deployment
Where Power Meets Precision
Cement
Textile
Paper
Chemical
Service & FAQ
Operational Support
Do you provide installation and after-sales support?
Yes. We offer remote guidance and global technical support for installation, commissioning, and after-sales service.
What applications are suitable?
Common uses include wastewater aeration, aquaculture, pneumatic conveying, fermentation, and industrial oxidation.
How much energy can be saved?
Energy savings are typically 20鈥40% compared with traditional Roots blowers, depending on pressure and operating conditions.
Is the discharged air completely oil-free?
Yes. There is no oil in the compression chamber, ensuring clean air for sensitive uses like aquaculture and wastewater.
Why choose a turbo blower over a Roots blower?
Turbo blowers offer higher efficiency, lower noise, oil-free air, smaller size, and reduced maintenance compared to Roots blowers.
Airfoil vs magnetic bearing 鈥 what's the difference?
Airfoil bearings use an air film for support. Magnetic bearings use electromagnetic force. Both are oil-free and high efficiency.
